Coreless Gear Motor 1215R-70

Product no.: 71215R70

Coreless gear motor (12 V) with reduction for very slow, smooth motion.

These gear motors were produced for years based on the standard Chinese N10 motor. Now they are available with more reliable coreless motors. Instead of a starting voltage of 5 V, they start from about 1 V, allow precise speed adjustment and run almost silently.

Typical uses on your layout:

  • windmills, water wheels
  • fairground attractions, playground equipment
  • advertising columns and other moving accessories

Technical Data:

  • Voltage: 12 V DC
  • No-load speed: 200 rpm
  • No-load current: 15 mA
  • Rated current: 92 mA
  • Stall current: 580 mA
  • Rated torque: 300 g.cm
  • Stall torque: 1200 g.cm

Also replaces the Faller 180722 (5 V).

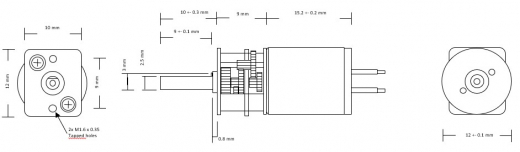

Product Features

Shaft type: Single shaft
Length: 24.0 mm
∅ outside: 12.0 mm
Shaft ∅ outside: 2.5 mm

Price:

14,95 EUR

19 % VAT incl. excl. Shipping costs

14,95 EUR per piece
