Coreless Motor 1524 D
Product no.: 71524D
Coreless motor, ∅ approx. 15 mm, length approx. 24 mm for installation in model vehicles and locomotives with two shaft connections
Due to their special design, coreless motors have no cogging when they turn. Even at very low speeds, the drive shaft rotates completely smoothly. A model vehicle equipped with a coreless motor will move in a very realistic way and will not jerk at low speeds. In addition, they are significantly quieter than conventional model motors.
Technical Data:
- Voltage: 12 V DC
- No-load speed: 11500 rpm
- Rated speed: 10000 rpm
- No-load current: 9 mA
- Rated current: 100 mA
- Maximum current: 1100 mA
- Load torque: 9.1 gf cm
- System torque: 118.0 gf cm

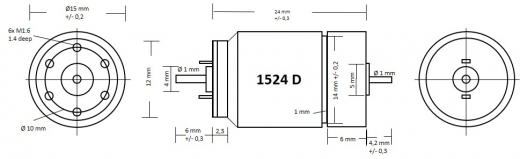

You will find the detailed dimensions of this coreless motor in the accompanying drawing.
Assembly Tips:
- When selecting the size of the coreless motor, you can use the original motor as a guide. Alternatively, you can modify the chassis of your model and use a larger, more powerful motor. Please measure carefully before you order.
- When installing, fix all connection points to the shaft adapter as well as to the flywheel and the pinion with a fast-curing metal adhesive.
| Scope of Delivery: | 1 piece (outer packaging may vary) |
| Safety Note: | The article offered here is intended as a model-making item and not as a toy within the meaning of the EU Toy Directive. It should only be handed over to suitable persons. |
Product Features
Price:
19,90 EUR
19 % VAT incl. excl. Shipping costs
19,90 EUR per piece
