Coreless Motor 1620 D

Product no.: 71620D

Coreless motor ∅ approx. 16 mm, length approx. 20 mm for installation in model vehicles with two shaft connections

Because of their special design, coreless motors have no locking points when turning. Even at the lowest speeds, the drive shaft rotates completely evenly. Your model vehicle, equipped with a coreless motor, will move in a completely authentic manner and will not jerk when driving slowly. They are also considerably quieter than conventional model engines.

technical data:

• Voltage: 12 volts DC
• No-load speed: 15000 rpm
• Rated speed: 12700 rpm
• No-load current: 50 mA
• Rated current: 283 mA
• Maximum current: 1600 mA
• Rated torque: 17.3 gf cm
• Stall torque: 115.0 gf cm

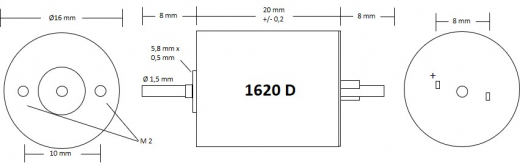

Please refer to the attached sketch for the detailed dimensions of this coreless motor.



---



Processing tips:

• When choosing the size of the coreless motor, you can use the original motor as a guide. Or you can modify the chassis of your model and use a larger, more powerful engine. Please measure carefully before ordering.
• Fix all connection points to the shaft adapter as well as to the flywheel mass and the pinion with a fast-adhesive metal adhesive.



Product Features

Price:

17,80 EUR

19 % VAT incl. excl. Shipping costs

17,80 EUR per piece
