Coreless Motor 0716 S
Product no.: 70716S
Coreless motor, ∅ approx. 7 mm, length approx. 16 mm for installation in model vehicles with a single shaft connection
Due to their special design, coreless motors have no cogging when they turn. Even at very low speeds, the drive shaft rotates completely smoothly. A model vehicle equipped with a coreless motor will move in a very realistic way and will not jerk at low speeds. In addition, they are significantly quieter than conventional model motors.
Technical Data:
- Voltage: 12 V DC
- No-load speed: 15200 rpm
- Rated speed: 9800 rpm
- No-load current: 24 mA
- Rated current: 97 mA
- Maximum current: 197 mA
- Load torque: 5.4 gf cm
- System torque: 10.8 gf cm

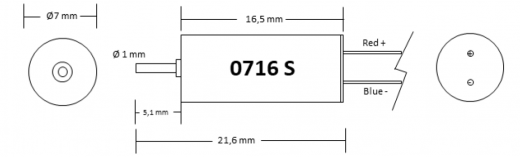

You will find the detailed dimensions of this coreless motor in the accompanying drawing.
Assembly Tips:
- When selecting the size of the coreless motor, you can use the original motor as a guide. Alternatively, you can modify the chassis of your model and use a larger, more powerful motor. Please measure carefully before you order.
- When installing, fix all connection points to the shaft adapter as well as to the flywheel and the pinion with a fast-curing metal adhesive.
| Scope of Delivery: | 1 piece (outer packaging may vary) |
| Safety Note: | The article offered here is intended as a model-making item and not as a toy within the meaning of the EU Toy Directive. It should only be handed over to suitable persons. |
Product Features
Price:
11,35 EUR
19 % VAT incl. excl. Shipping costs
11,35 EUR per piece
